MAN SX 200 MLC 70 Wegenmatsysteem

MAN SX 200 MLC 70 Wegenmatsysteem
English Translation

Historique Voir ICI
History Click HERE

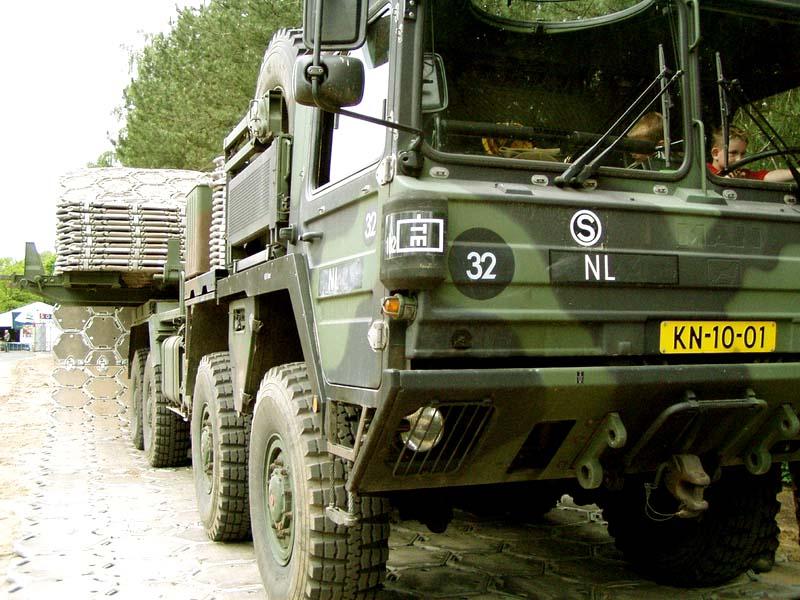

The SX series is a most mobile and reliable truck. It is primarily deployed as a carrier for sensitive weapons systems, since its boxed frame structure does not pass on any torsion, even when driving at full speed in difficult terrain.
Vehicles in the SX series are military trucks with strategic importance. Their rigid axles and boxed frame construction give them an unsurpassed record of mobility and reliability in any terrain
The MLC 70 Wegenmatsysteem

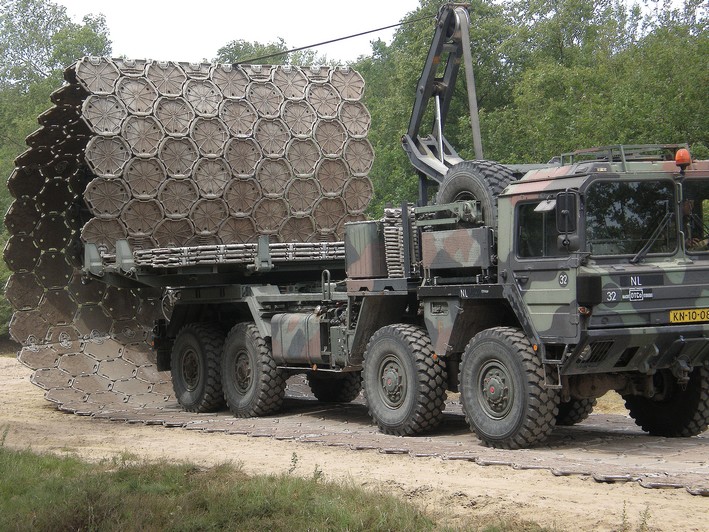

MLC-70 trackway systemThis roll-up mat of steel or plastic serves as temporary (roadway) pavement. It can be used for detours, water-crossings or as runways for aircraft. The MLC-70 roadway/matting system can quickly and flexibly make poorly navigable terrain driveable.
Technical data
Length  11.37 m
Width  3.03 m (with road mat); 2.50 m (without road mat)
Height  3.6 m (normal); 3.02 m (in transit)
Weight  19,600 kg and 28,800 kg (without and with road mat)
Transport  Krauss-Maffei lorry with 4-axle undercarriage

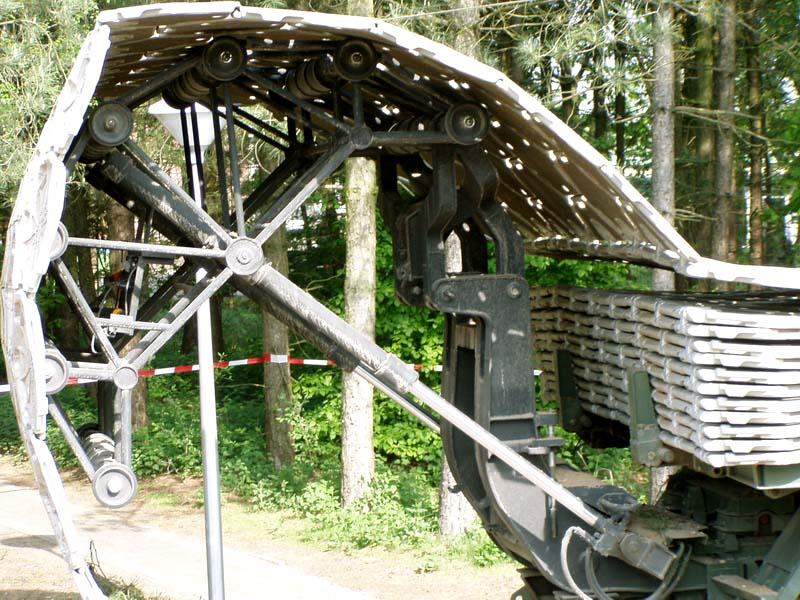

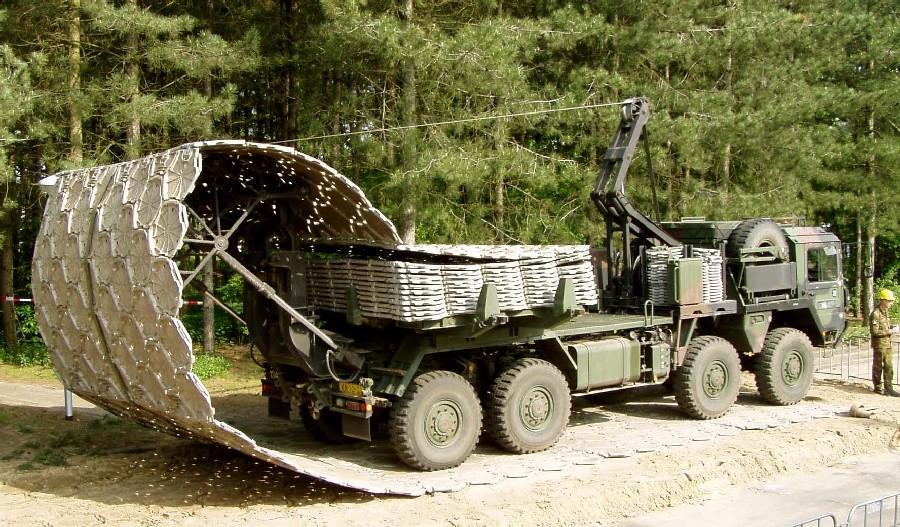

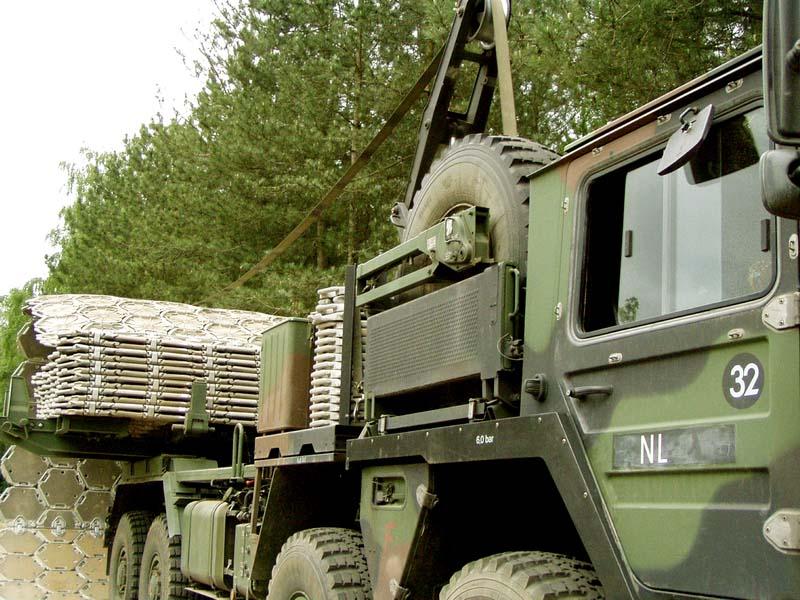

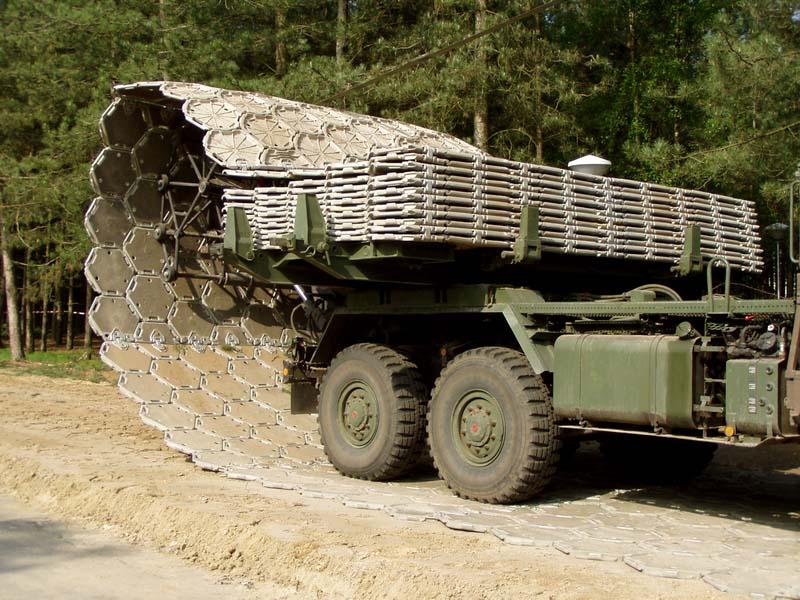

In use with  Royal Netherlands ArmyLaying the roadway/mat systemAn installation is placed on the rear of the terrain lorry for military personnel to lay out the roadway/mat. The roadway/mat system includes a folded mat that is automatically rolled out when laying the system. The roadway/mat sections can be connected together. For 2 types of roadway/mat systems, a Liebherr crane is needed to hoist the roadway/mats onto and off of the lorry. Bearing strengthThe roadway/mats can support tanks and vehicles up to 650 kN (kiloNewton).
