Allemagne Artillerie Canons sur rail (Eisenbahnlafette) English Translation
Article fait par :Claude Balmefrezol
Mis en ligne le 01/05/2007 à 12:00:29
Les Canons sur rail allemands (eisenbahnlafette )
English Translation
Type |
calibre (mm) |
Longueur tube ( m) |
calibre |
poids du canon (T) |
Elevation |
poids total (T) |
Portée (max) |
15 cm Kanone Type E |
149.3 |
5.960 |
40 |
5.8 |
+10/+45 |
74 |
22.5 |

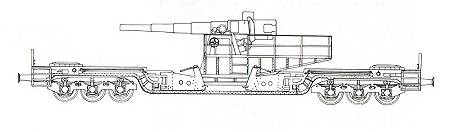

17 cm Kanone Type E |
173 |
6.9 |
40 |
20.7 |
+10/+45 |
80 |
13.5 |

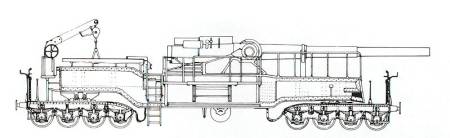

20 cm Kanone Type E |
203 |
12.155 |
60 |
20.7 |
+10/+47 |
86.1 |
13.7 |

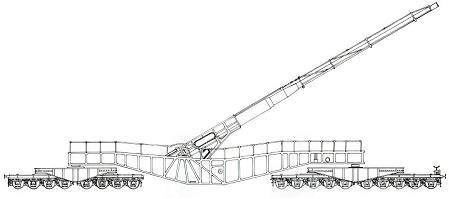

21 cm Kanone 12 "Paris Geschütze" |
211 |
33.3 |
158 |
88.7 |
+25/+55 |
302 |
45 |

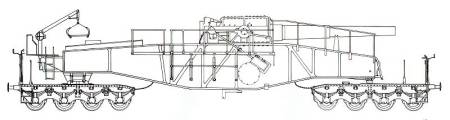

24 cm Kanone "Theodor Bruno" |
238 |
8.4 |
35 |
24 |
+10/+45 |
94 |
10 |
24 cm Kanone "Theodor " |
238 |
9.5 |
40 |
24.04 |
+10/+45 |
95 |
26.7 |

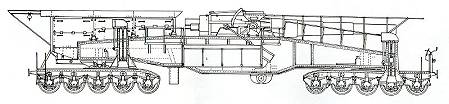

28 cm Kanone "Kurz Bruno" |
283 |
11.2 |
40 |
45.3 |
+10/+45 |
129 |
14.3 |

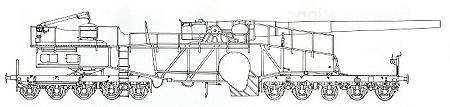

28 cm Kanone "Lange Bruno" |
283 |
12.73 |
45 |
39.8 |
+10/+45 |
123 |
16.8 |
28 cm Kanone "Schwere Bruno" |
283 |
11.93 |
42 |
40.8 |
+10/+45 |
118 |
16.8 |

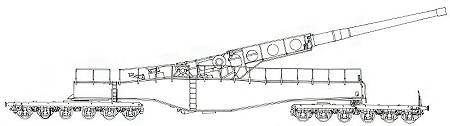

28 cm Kanone "Kanone Bruno Neue " |
283 |
16.4 |
58 |
55.26 |
0/+50 |
150 |
16.8 |
28 cm Kanone "K 5" |
283 |
21.53 |
76 |
85 |
0/+50 |
218 |
36.6 |

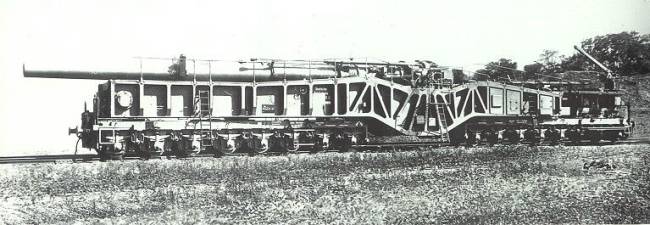

38 cm"Siegfried" |
380 |
19.63 |
52 |
105.3 |
0/+45 |
294 |
36 |
40.6cm Kanone Adolf |
460 |
20.3 |
50 |
152.7 |
0/+45 |
323 |
56 |
80 cm Kanone Gustav Gërat" Dora |
800 |
32.48 |
40 |
400 |
+10/+65 |
1350 |
47 |
|
|

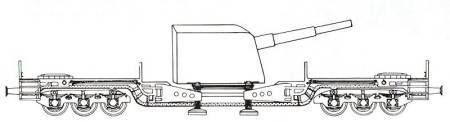

15 cm Kanone Type E |

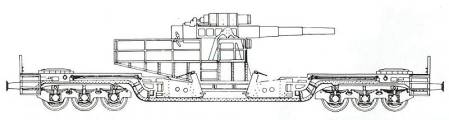

15 cm Kanone Type E |
|
|
17 cm Kanone Type E |
20 cm Kanone Type E |
|
|
21 cm Kanone 12 "Paris Geschütze" |
24 cm Kanone "Theodor Bruno" |
|
|
24 cm Kanone "Theodor " |
28 cm Kanone "Kurz Bruno" |
|
|

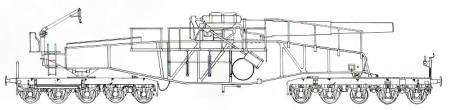

28 cm Kanone "Lange Bruno" |
